Front Runner Load Bar Kit for Suzuki Jimny (2018+)

KRSJ007
£265.83 GBP

loading..
ABOUT THE BRAND

Front Runner are a South African company that has become synonymous with manufacturing tough, functional and durable equipment for overlanding, off-roading and exploring. We are proud to be Front Runner’s largest UK stockist, holding a large range of their roof racks, load bars, roof tents and accessories.

DELIVERY INFORMATION

If this item is showing as in stock in our Main Warehouse, it will be dispatched within 1-2 working days. If this item is only showing as in stock in our EU Warehouse, please allow 7-10 working days for this item to be dispatched. EU Customers: items in stock in our EU Warehouse will be dispatched within 1-2 working days.

Tax information:

  • EU CUSTOMERS: EU VAT will be charged on this product at the checkout. There will be NO import duties or import taxes!
  • ALL OTHER INTERNATIONAL CUSTOMERS: this product can only be shipped from our UK warehouse. Import duties and/or import tax might be payable when this shipment arrives
SPECIFICATION

You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.

Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.

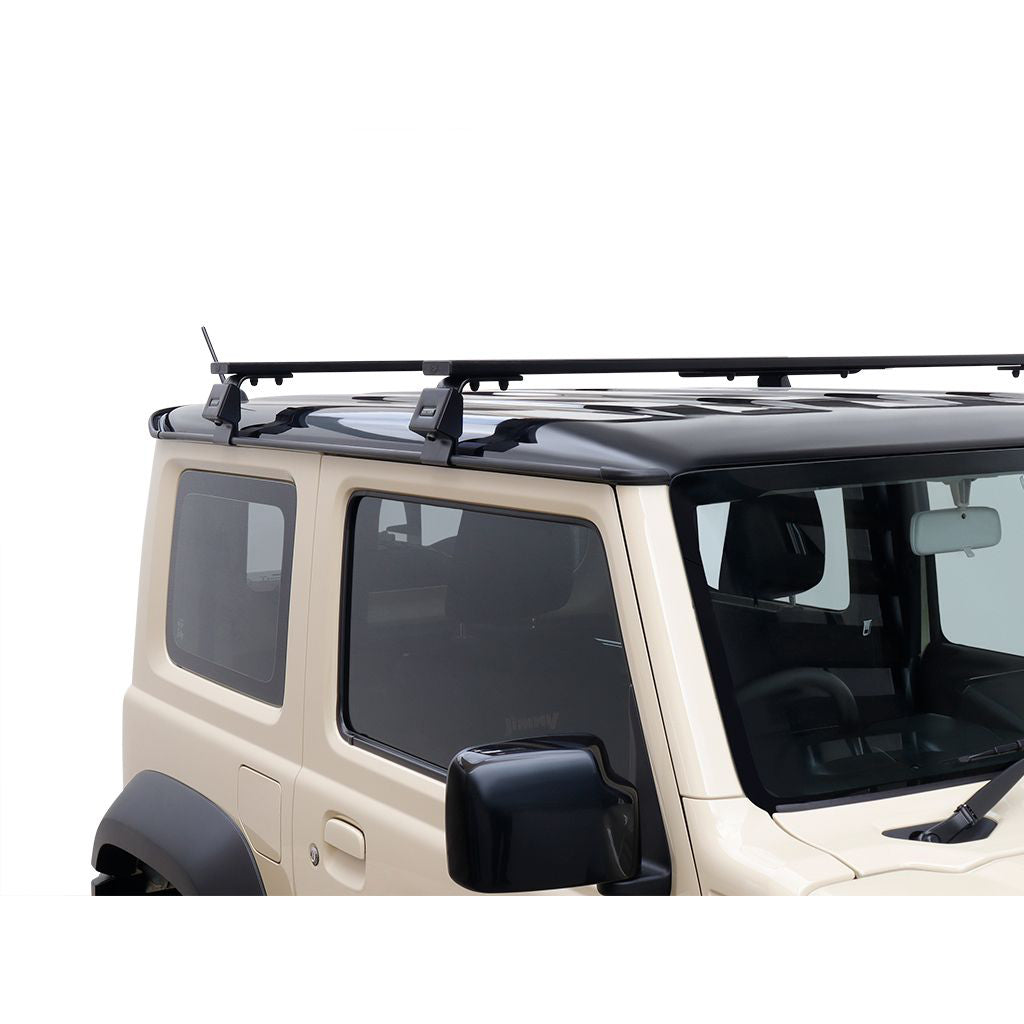

The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.

Uses the same strong, corrosion free aluminium slats found in Front Runner Slimline II Racks.

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.

Made from stainless steel and a durable, weather resistant black powder-coated aluminium.

Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

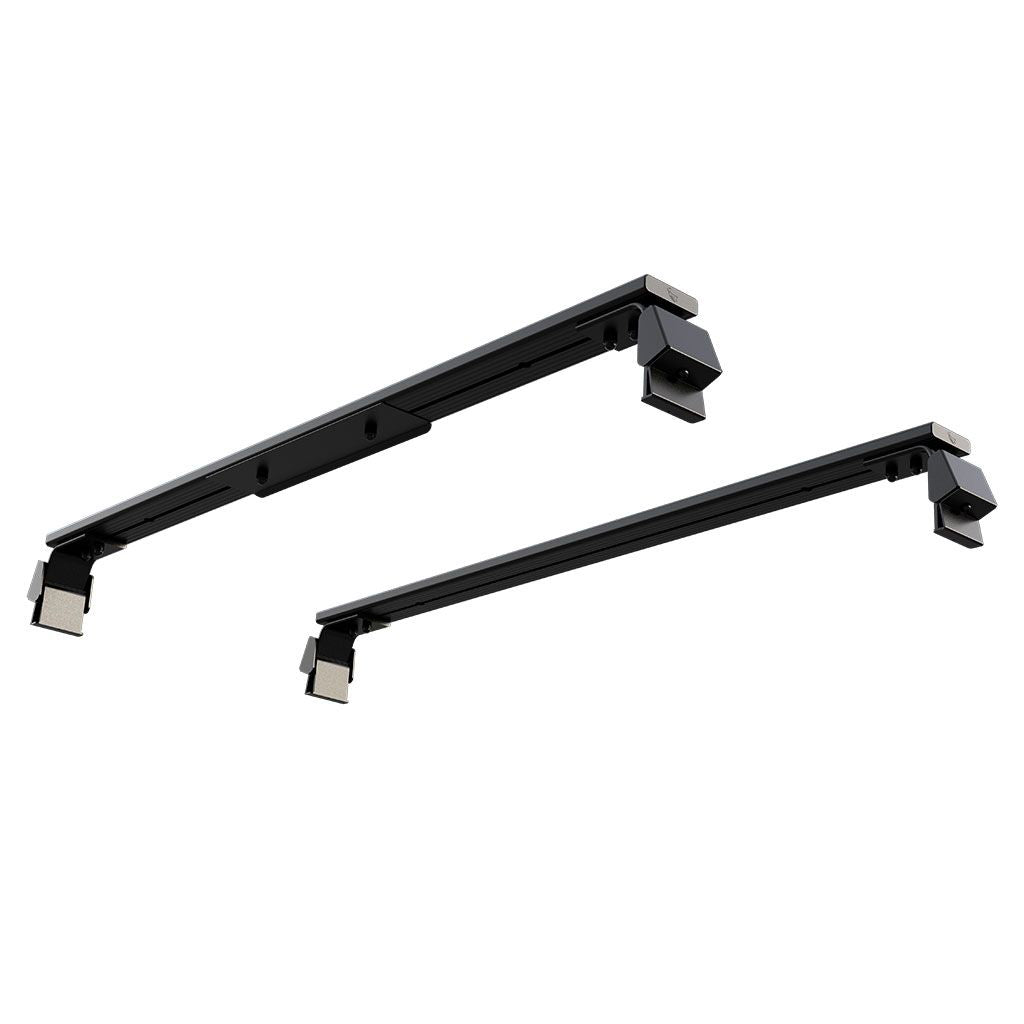

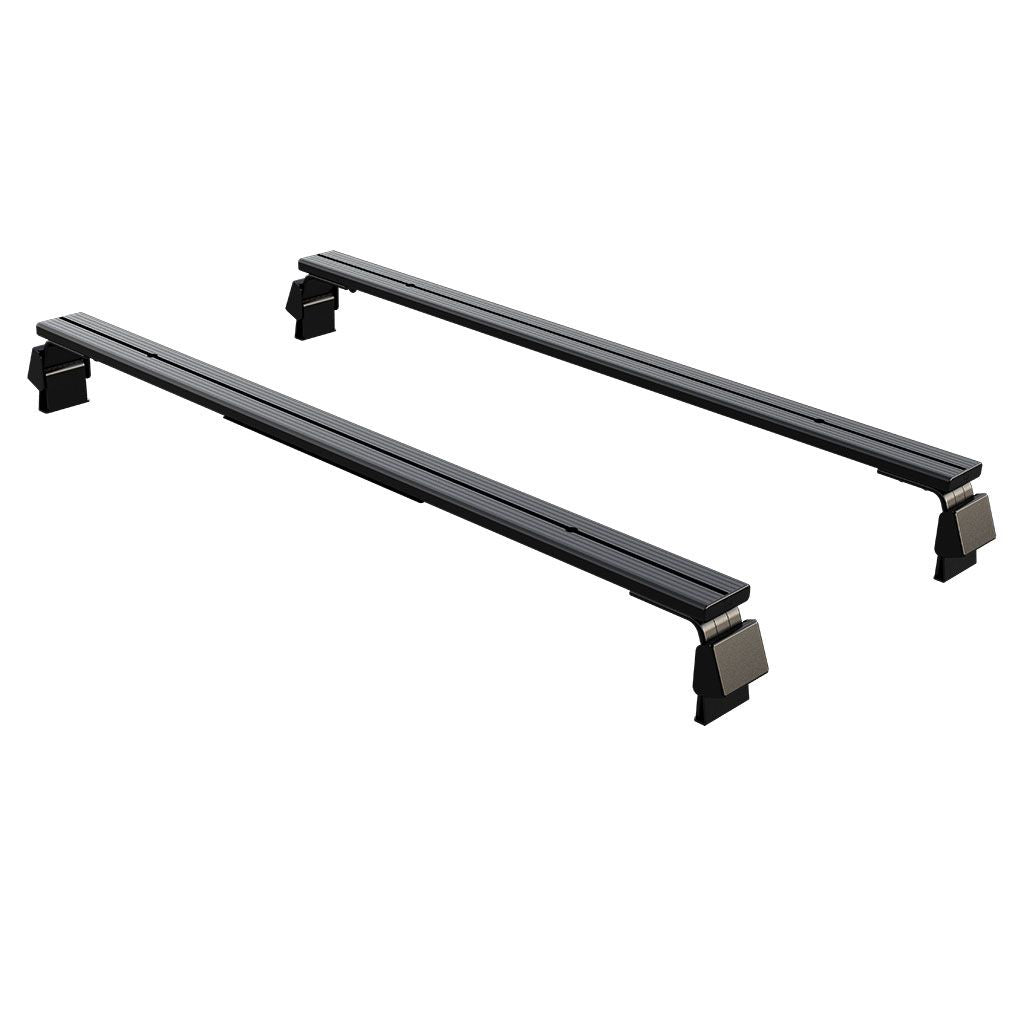

KRSJ007 - Suzuki Jimny (2018+) Load Bar Kit

Consisting of:
2 x LASS102 - No 2 Leg 130mm (Pair) - by Front Runner
1 x LBSK015 - Roof Load Bar Pair 1345mm(W) - by Front Runner
1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 7kg (16lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

The Suzuki Jimny (2018-Current) Load Bar Kit (KRSJ007) adds a minimum height of 180mm measured from the highest point on the gutter of the roof. Please see notes above depending on the type of foot used.

Shipping Dimensions:

Width 205mm (8")
Length 600mm (24")
Height 75mm (3")

Shipping Weight:

Weight 8.3kg (18.3lbs)

Load rating of the Suzuki Jimny (2018-Current) Load Bar Kit (KRSJ007):
The Suzuki Jimny (2018-Current) Load Bar Kit (KRSJ007) can take up to 100kg (220lbs) evenly dispersed over 2 load bars.
We recommend referring to the vehicle manufactures guide as to what would be a safe load rating for your particular vehicle.

Front Runner are a well respected manufacturer of off-roading accessories, prioritising quality, toughness and durability over anything else.

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 130mm Gutter Mount legs, 2 1345mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

Note: Load carry limit and accessory compatibility is reduced with load bars, Please also check the maximum roof load capacity of your vehicle.

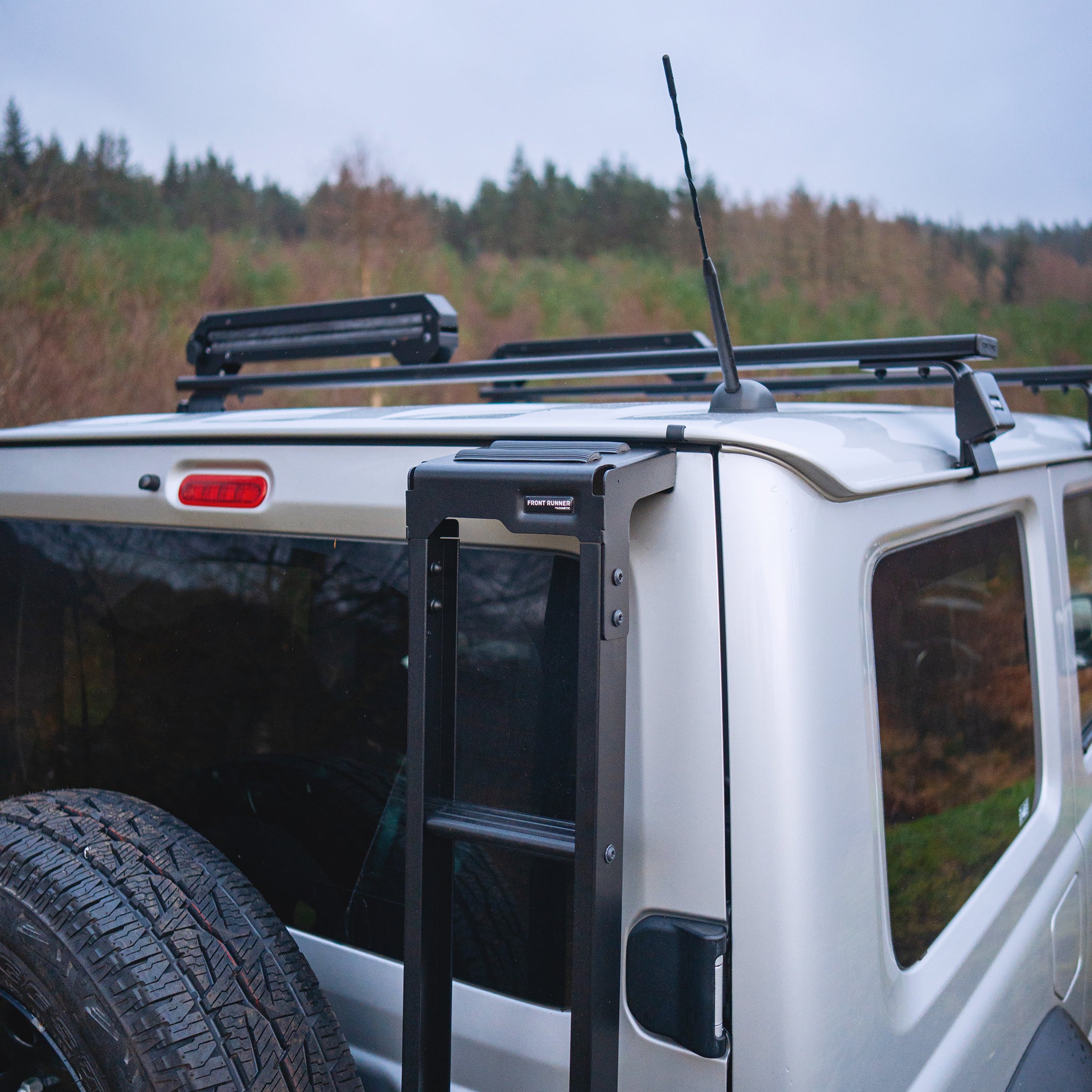

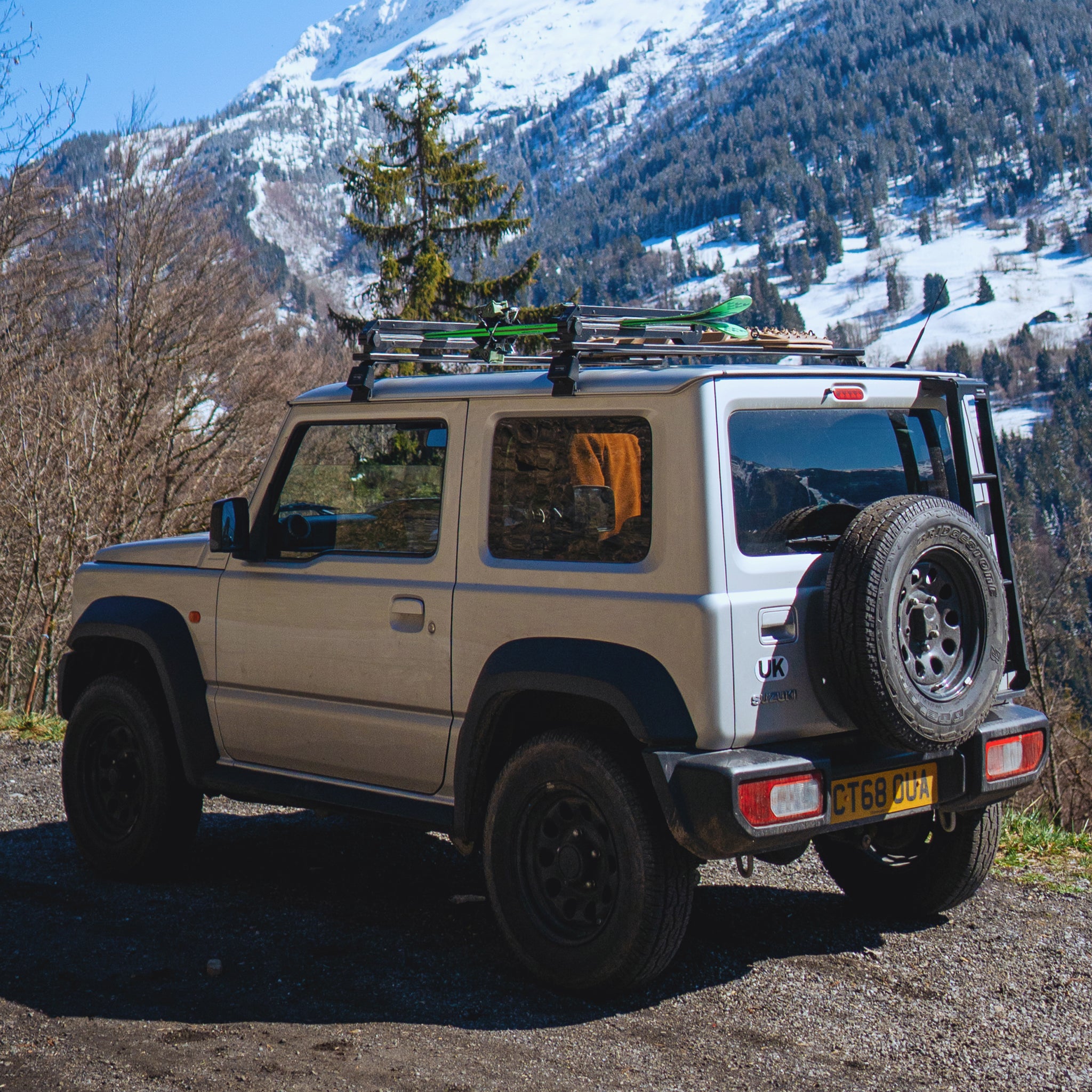

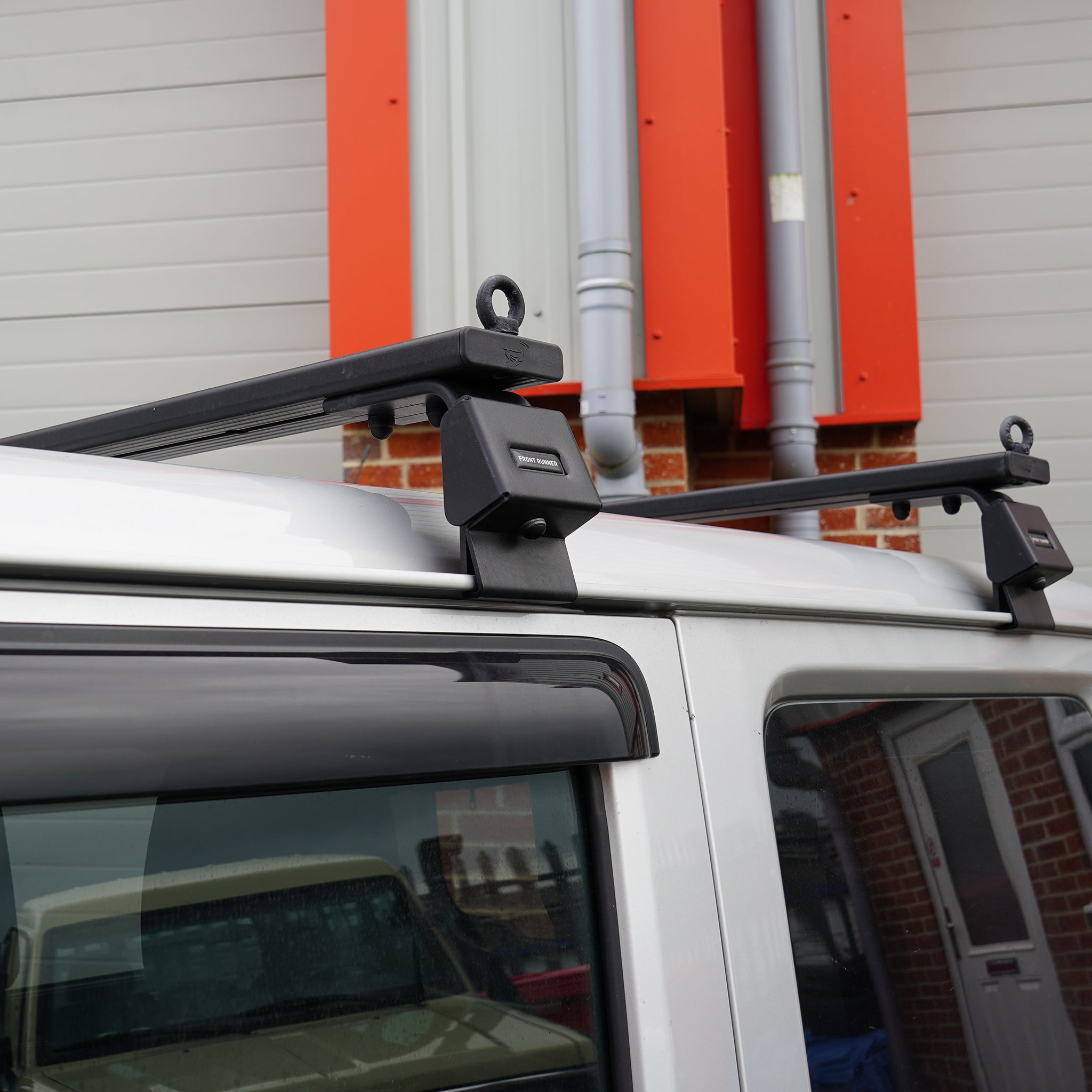

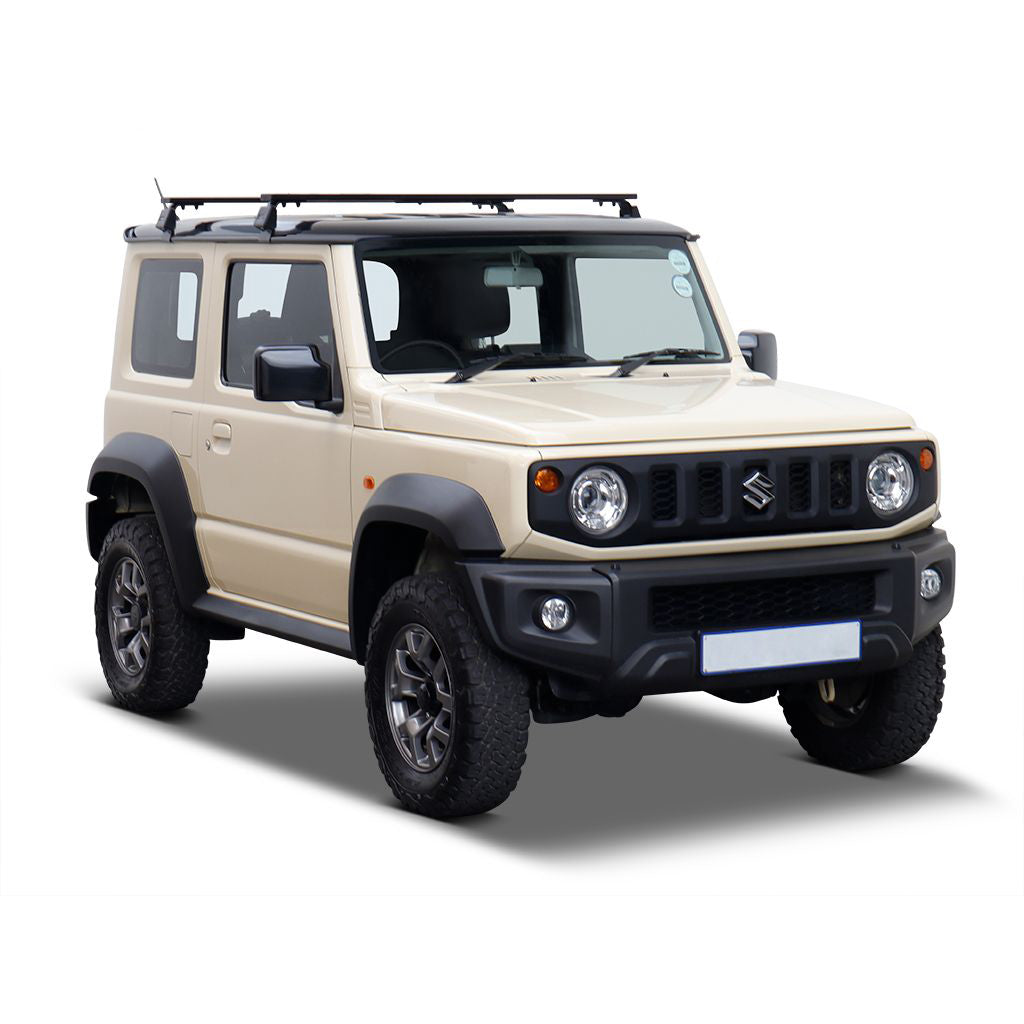

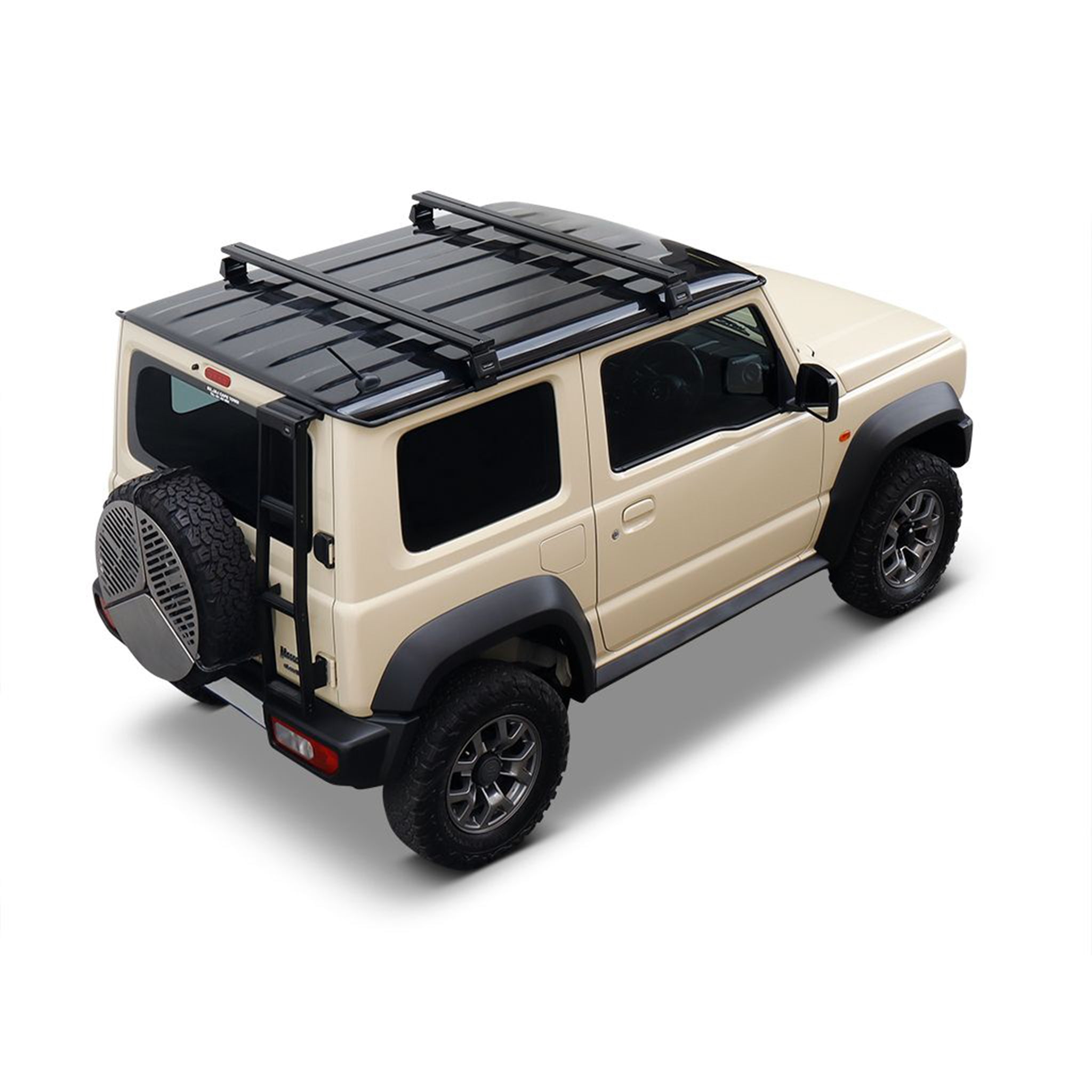

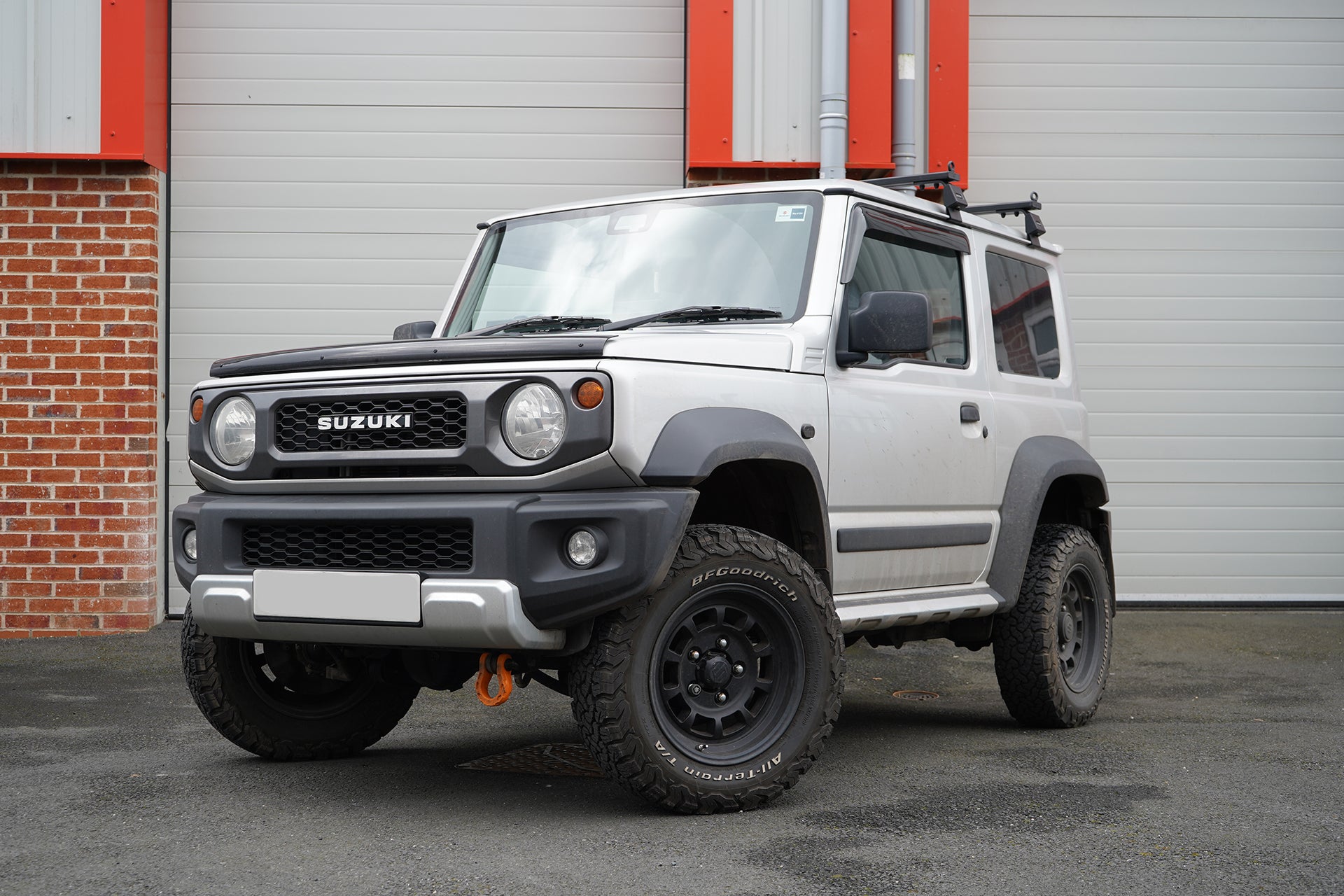

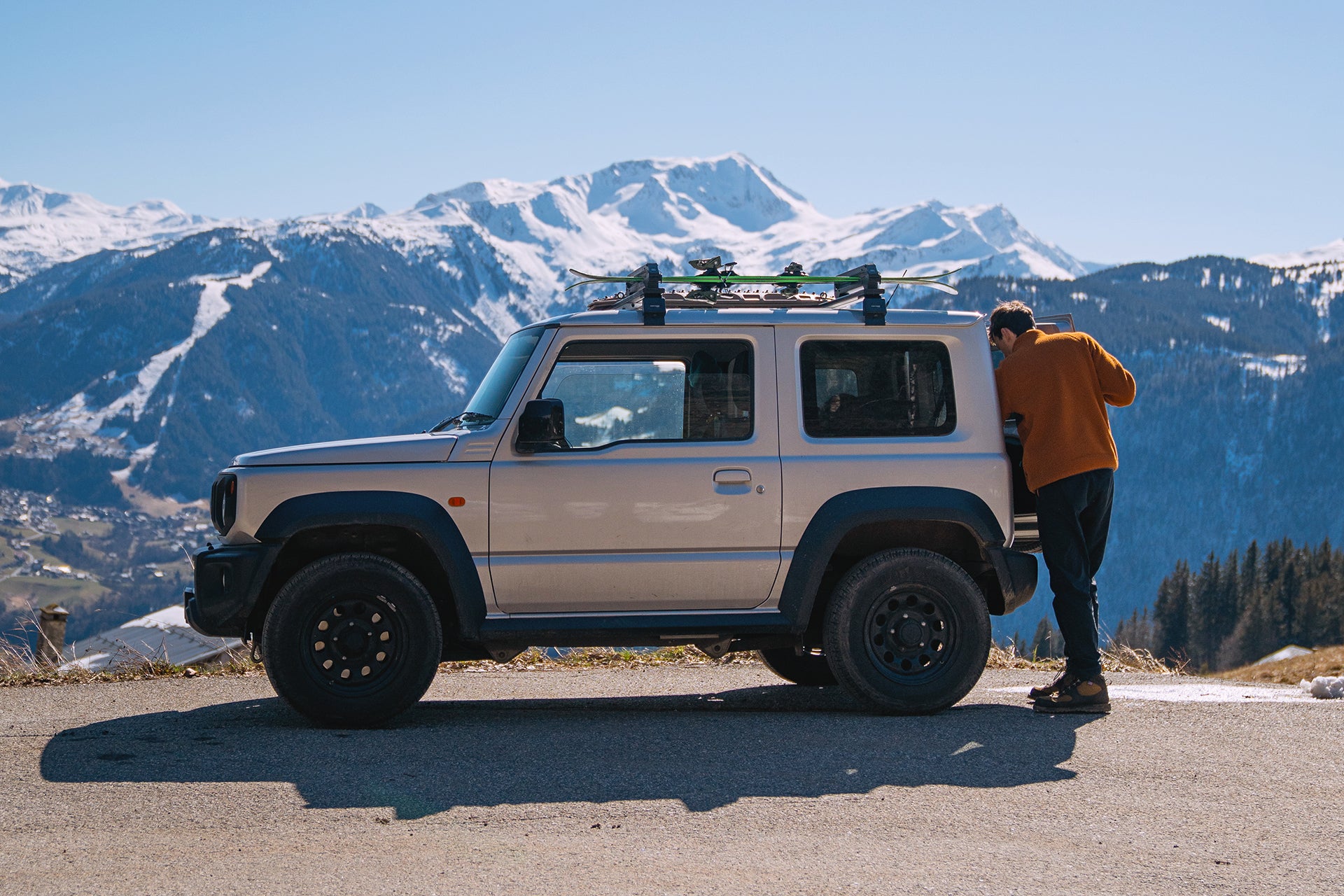

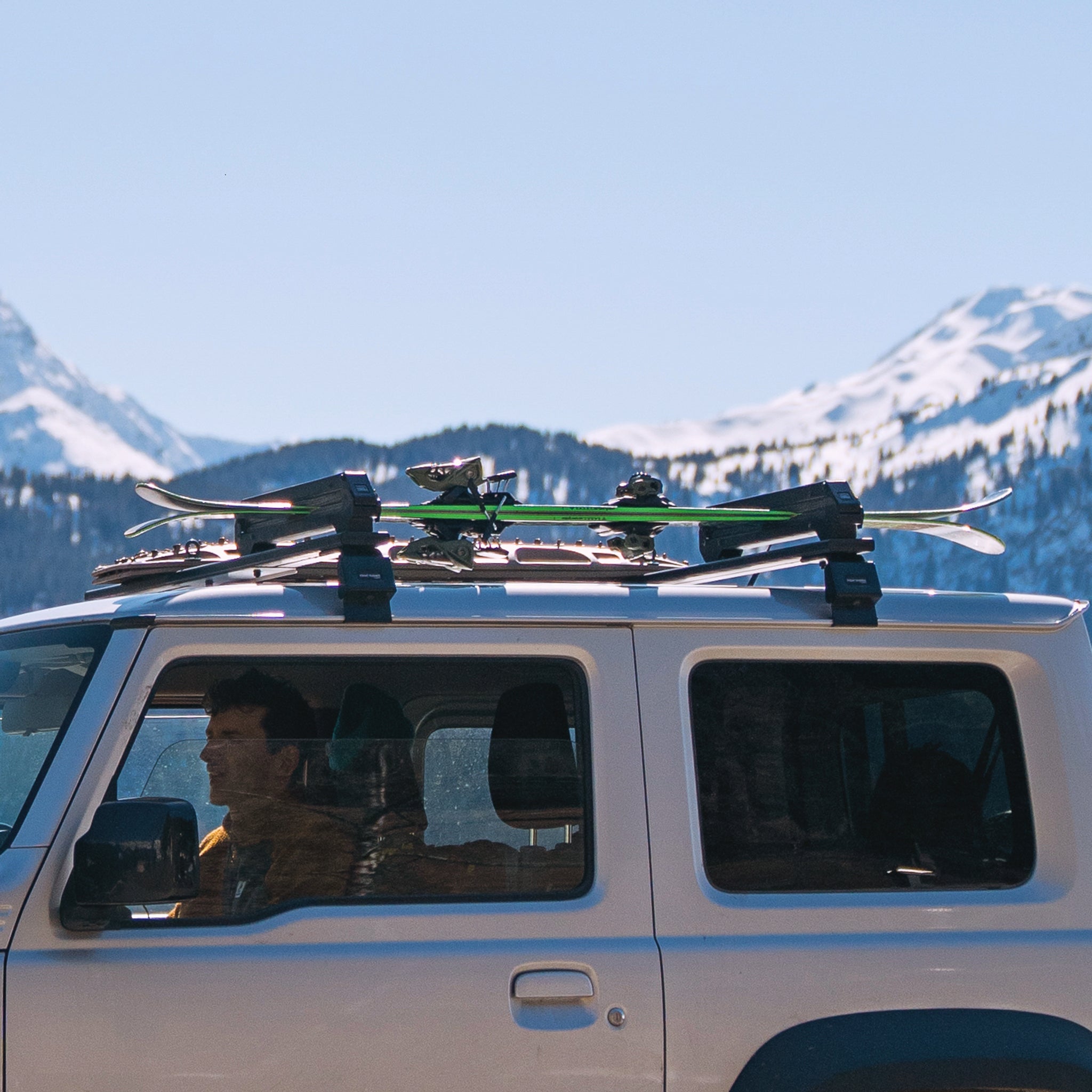

Our Product photos show the Load bar Kit fitted to a demo Jimny along with Front Runner Accessories, including Tie Down Rings and a  Front Runner Pro Ski, Snowboard & Fishing Rod Carrier for Slimline II Roof Rack. Front Runner accessories are sold separately and are not included.

Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

KRSJ007 - Suzuki Jimny (2018+) Load Bar Kit
